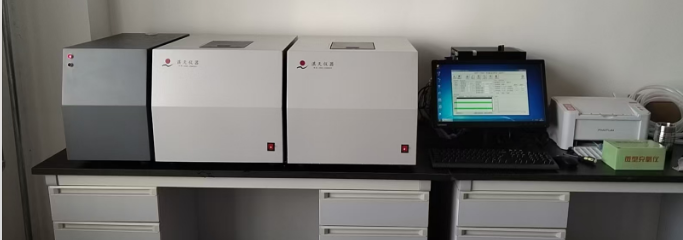

微機全自動量熱儀Microcomputer automatic calorimeter

全自動量熱儀主要由恒溫式彈桶量熱儀及微型計算機等部分組成，是一種由計算機軟件控制,并能進行對其數據處理的多功能、自動化熱量測試儀器。該儀器具有測量精度高、操作簡便、使用可靠、外觀精美等特點，主要用于煤炭、石油、化工、食品、木材、生活垃圾等可燃物質發熱量的測定。Microcomputer automatic calorimeter mainly consisting of thermostatic Shell calorimeter and microcomputer etc is a kind of versatile and automated heating testing instrument controlled by computer software and capable of data processing. The instrument features in accuracy, easiness to operate, reliability and attractive appearance and so on which is widely used in determination of calorific value of combustible substances such as coal, petroleum, chemical, food, timber as well as explosives and so on.

適用標準Applicable standards:：

GB/T213-2008《煤的發熱量測定方法》

GB/T213-2008 "Method for determining the calorific value of coal"

JC/T1005-2006《水泥黑生料發熱量測定方法》

JC/T1005-2006 "Method for determination of calorific value of cement black raw materials"

GB/T30727-2014 《固體生物質燃料發熱量測定方法》

GB/T30727-2014 "Determination of calorific value of solid biomass fuels"

GB/T14402-2007/ISO1716:2002《建筑材料及制品的燃燒性能燃燒熱值的測定》

GB/T14402-2007/ISO1716:2002 "Combustion performance of building materials and products  Determination of combustion heat value"功能特點

1、外型美觀大方，選材考究，制作精良，結構合理，故障率低。

1. Features
1 It is beautiful and elegant, well-made and well-structured with special material and low failure rate.

2、整個過程操作簡單，只需將裝有試樣的氧彈充氧后放入量熱儀內，試驗自動完成。

2 It is quite easy in operation in the whole process and just by adding the oxygen bomb filled with oxygen and samples into the calorimeter, then the experiment can be automatically completed.

3、采用雙筒結構往內桶中注水，有效的避免了注水后因水位過高溢出的現象。
3 Injecting water into the inner barrels by means of binoculars effectively avoids the overflow phenomenon due to high water level.

4、采用水位平衡盒平衡水位，重復誤差＜0.5g，水量準確，實驗時間短。

4 The water level balance box is used for water level equilibrium so that the repeated error can be smaller than 0.5g, the water volume is accurate and experimental time lasts shorter.

5、采用進口攪拌電機，使內桶水快速對流，攪拌充分。

5 Imported mixing motor is used so as to make sure of fast water convection of inner barrels and can meet a full mixing.

6、測試軟件支持windows平臺，穩定性好，操作方便易學易懂。
6 The test software extends great support for windows platform which is good at stability and easy operation and simple understanding.

2 .微機全自動量熱儀技術參數

測溫范圍：0~40℃（每次測定室溫變化應≤1℃）相對濕度≤85%

溫度分辨率：0.0001℃

測試時間：點火初期6分鐘平衡水溫。點火后12分鐘測試主期溫度，全程實驗時間18---20分鐘（煤樣熱量低實驗時間相對延長）。

2. Technical parameters

Temperature range: 0 ~ 40 ℃ (every temperature change should be≤1 ℃)

Relative humidity ≤85%

Temperature resolution: 0.0001 ℃

Test time: it takes 6 minutes for temperature balance in early ignition. The main temperature will be measured after 12 minutes of ignition and the entire experiment lasts from 18 to 20 minutes (coal heat is low and the test time can be relatively extended).

功    率：<500W        電源：220V±10V

外觀尺寸：400mm×575mm×456mm

測量精度：符合國標GB/T213-2008

外桶容量：35L    內桶容量：2.3L    點火電壓：24V

Power: <500W power      supply: 220V ± 10V

Dimensions: 400mm × 575mm × 456mm
Accuracy: meeting the national standard GB / T213-2008
Outer barrel capacity: 35L     inner barrel capacity: 2.3L    Ignition Voltage: 24V
